Goedkope N-type systeem zonnepaneel Home Quotes 560W 565W 580W Mono Half Cells

Goedkope N-type systeem zonnepaneel Home Quotes 560W 565W 580W Mono Half Cells

Productdetails:

Plaats van herkomst: Anhui, China
Merknaam: Amosolar
Modelnummer: AS565-580M10-144

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal: 20000 watt
Prijs: $0.12/watts 20000-99999 watts
Verpakking Details: kartonnen en paletten en houten dozen
Levering vermogen: 5000 stuks per maand
Beste prijs Contact

Gedetailleerde informatie

Grootte van de cel: 182 mmx182 mm Type: PERC, halfcel, bifaciaal, dubbelglas, geheel zwart, N-type
Afmetingen van het paneel: 2278*1134*30mm Panel-efficiëntie: 220,45%, 22,45%
Garantie: 25 jaar Kabellengte:: 300 mm (+) / 300 mm ((-)
kabelgrootte:: 4 mm2 ((IEC) Verpakking:: 36 stuks / pallet 720 stuks / 40HQ container
aansluitdoos:: Split-junction box, IP68, 3 diodes kader:: geanodiseerde aluminiumlegering
Cellen Type:: N-type 182*91 mm Glas:: 3.2mm High Transmission, Antireflectiecoating
Toepassingsniveau:: Klasse A Certificaat: CE TUV IEC
Haven: Shanghai / Ningbo / Guangzhou / Shenzhen

Productomschrijving

Beschrijving van het zonnepaneel
Goedkope N-type systeem zonnepaneel Home Quotes 560W 565W 580W Mono Half Cells 0
Mechanische gegevens
Model
AS565M10-144
AS570M10-144
AS575M10-144
AS580M10-144
Maximaal nominale vermogen bij STC
565 W
570W
575 W
580 W
Open-circuitspanning (Voc)
50.60
50.74
50.88
51.02
Maximale vermogenspanning (Vmp)
41.92
42.01
42.22
42.37
Kortsluitingstroom (Isc)
14.23
14.31
14.39
14.47
Maximaal vermogenstroom (Imp)
13.48
13.55
13.62
13.69
Efficiëntie van fotovoltaïsche modules (%)
21.87
22.07
22.26
22.45
Standaard
Instralingssterkte 1000w/m2, celtemperatuur 25 °C, luchtmassa 1.5
GEWALDENDE technologie
Goedkope N-type systeem zonnepaneel Home Quotes 560W 565W 580W Mono Half Cells 1
Goedkope N-type systeem zonnepaneel Home Quotes 560W 565W 580W Mono Half Cells 2
Goedkope N-type systeem zonnepaneel Home Quotes 560W 565W 580W Mono Half Cells 3
Goedkope N-type systeem zonnepaneel Home Quotes 560W 565W 580W Mono Half Cells 4
Certificeringen
Goedkope N-type systeem zonnepaneel Home Quotes 560W 565W 580W Mono Half Cells 5
Over ons
Goedkope N-type systeem zonnepaneel Home Quotes 560W 565W 580W Mono Half Cells 6
Goedkope N-type systeem zonnepaneel Home Quotes 560W 565W 580W Mono Half Cells 7

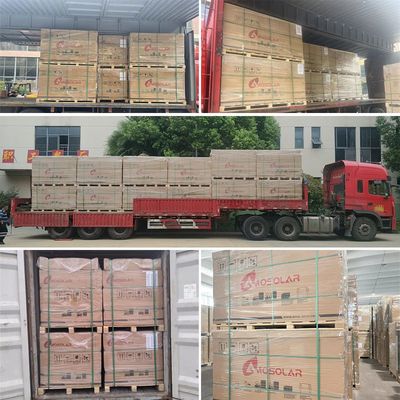

Verpakking en levering
Om de veiligheid van uw goederen beter te garanderen, worden professionele, milieuvriendelijke, handige en efficiënte verpakkingsdiensten aangeboden.
Goedkope N-type systeem zonnepaneel Home Quotes 560W 565W 580W Mono Half Cells 8
Project
Goedkope N-type systeem zonnepaneel Home Quotes 560W 565W 580W Mono Half Cells 9

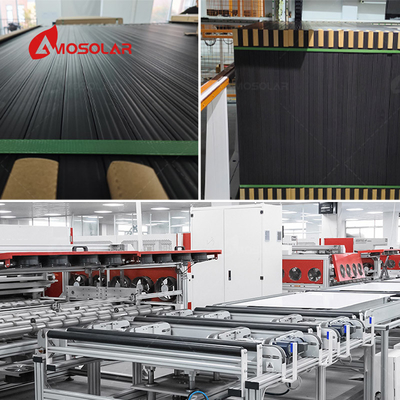

Auto productielijn
Goedkope N-type systeem zonnepaneel Home Quotes 560W 565W 580W Mono Half Cells 10
Goedkope N-type systeem zonnepaneel Home Quotes 560W 565W 580W Mono Half Cells 11
Goedkope N-type systeem zonnepaneel Home Quotes 560W 565W 580W Mono Half Cells 12
Slimmere productie

Het gebruik van volledig geautomatiseerde productiefaciliteiten
Geavanceerd kwaliteitscontrolesysteem

GEWALDENDE technologie

Geautomatiseerde productiefaciliteiten Geavanceerd kwaliteitscontrolesysteem Zelf ontwikkeld volledig transparant kwaliteitsmanagementsysteem 15+ jaar ervaring in R&D in de zonne-energie-industrie
OEM-service
